151)     Buried piping inspected periodically by excavation shall be inspected in lengths of __________ feet at one or more locations judged to be most susceptible to corrosion



            a)            2 to 4                 b)          4 to 6                 c)          6 to 8                 d)          8 to 10



152)     After excavation of buried piping, if inspection reveals damaged coating or corroded piping :



            a)         the condition should be noted in the records and the inspection interval shortened

            b)         the complete piping system must be day-lighted (excavated) for repair or replacement.

            c)         the damaged coating or corroded piping must be repaired or replaced

            d)         additional piping shall be excavated until the extent of the condition is identified.



153)     If buried piping is contained inside a casing pipe, the casing should be :-



            a)         capable of carrying the same pressure as the product pipe

            b)         checked to see if its protective coating is intact and serviceable

            c)         pressure tested to make  sure it is serviceable

            d)         inspected to determine if water and / or soil has entered the casing



154)     An alternative or supplement to inspection of buried piping is leak testing with  liquid at a pressure at least __________ % greater than the maximum operating pressure at intervals ½ the length of those shown in Table 9-1 of API 570 for piping NOT cathodically protected and at the same intervals as shown in Table 9-1 for cathodically protected piping



            a)            5           b)          10         c)          25         d)          50

155)     The leak test for buried piping should be for a period of __________ hours.



            a)            4           b)          8           c)          12         d)          24



156)     The leak test for a 8" diameter buried piping system is 300 psi. After 7 hours, the pressure reacts 273 psi. What should the inspector do ?



            a)         Nothing is required. The loss of pressure is negligible and will not affect the test. The loss can be disregarded.

            b)         The system should be re-pressurised to the original leak test pressure and the test should begin again.

            c)         The test charts and the temperature should be reviewed to determine if any change in temperature caused the pressure drop.

            d)         The piping should be visually inspected externally and / or inspected internally to find the leak and assess the extent of corrosion.



157)     A buried piping system that is not cathodically protected has to have an inspection interval set. The soil resistivity is checked and found to be 3400 ohm/cm. As the inspector, what interval would you set ?

            a)            2.5 years            b)          7.5 years            c)          5 years               d)          10 years



158)    Buried piping also may be surveyed for integrity by removing the line from service and performing a leak test. This inspection method typically involves pressurising the line with a __________, allowing time for the __________ to diffuse to the surface and surveying the buried line with a gas-specific detector to detect the __________



            a)            tracer gas (such as helium or sulphur hexafluoride)

            b)           light hydrocarbon (such as butane)

            c)            smoke type material (such as chemical smoke)

            d)           water vapour (such as steam)



159)     Repairs to coating on buried piping may be tested using



            a)            a low-voltage holiday detector

            b)           light taps with an inspection hammer

            c)            a flaw indicator fluid

            d)           a high-voltage holiday detector



160)     If buried piping leaks are clamped and reburied :-



            a)            no further action is required unless the piping leaks again

            b)           the date of installation shall be marked on the clamp for future identification

            c)            a record of the location and the date of installation shall be maintained

            d)           the clamped line shall be leak tested.





161)     A 10" diameter piping system with 4" diameter and 6" diameter reinforced branch connections is to have changes made to it. Which of the following is considered an alteration ?



            a)         A new 1" diameter un-reinforced nipple is installed

            b)         A new 8" diameter reinforced branch connection is installed

            c)         A new 4" diameter reinforced branch connection is installed

            d)         A new 3" diameter reinforced branch connection is installed



162)     Which of the following would not be classified as an applicable code to which a piping system was built ?



            a)         ASME B31.3                                               b)          ASME B31.1

            c)         ASA B31.1-1955, Section 3                        d)          ASTM A-20



163)     Which of the inspection agencies listed below is NOT an Authorised Inspection Agency as defined in API 570.



            a)            Jurisdictional inspection organisation

            b)           Owner-user inspection organisation

            c)            ASTM inspection organisation

            d)           Independent inspection organisation



164)     An authorised piping inspector is an employee of an authorised inspection agency who is qualified to perform the functions specified in API 570. Which individual listed below is not usually an authorised piping inspector.



            a)            An owner-user inspector.                          b)          A jurisdictional inspector

            c)            An NDE examiner                                    d)          An insurance inspector



165)     Which of the following qualifies as auxiliary piping ?



            a)            control valve manifolds               b)          bypass lines around exchangers

            c)            pump seal oil lines                                     d)          orifice runs



166)     CUI stands for :-



            a)            control unit inspector                                b)          corrosion under insulation

            c)            corrected unobtrusive inserts                    d)          corroded underground installation



167)     Deadlegs legs of a piping system are :-



            a)            the upstream piping of control valve manifolds

            b)           supports attached to a pipeline that has no product in them

            c)            the upstream part of an orifice runs

            d)           sections that normally have no significant flow



168)     A defect is an imperfection of a type or magnitude exceeding the __________ criteria.



            a)            non-specific       b)          imprecise            c)          general               d)          acceptable

169)     The design temperature of a piping system component is the temperature at which, under the coincident pressure, the __________ is required.



            a)            smallest thickness or highest component rating

            b)           greatest thickness or highest component rating

            c)            maximum thickness or lowest component rating

            d)           minimum thickness or minimum component rating



170)     An examiner is a person who __________ the inspector



            a)            supplants            b)          assists                 c)          supervises          d)          directs



171)     Hold point is a point in the repair or alteration process beyond which work may not proceed until the __________ has been performed and documented



            a)            PWHT required              b)          required inspection

            c)            RT required                                  d)          ultrasonic testing



172)     What is an imperfection ?



            a)         It is a flaw or discontinuity noted during inspection that may be subject to acceptance.

            b)         It is a defect noted during inspection that is unacceptable.

            c)         It is a weld flaw noted during an inspection that may be subject to repair

            d)         It is a blemish that is only cosmetic and acceptable under all conditions



173)     __________ : is a response or evidence resulting from the application of a non-destructive evaluation technique



            a)            indication           b)          imperfection      c)          breach                d)          division



174)     What are points where chlorine is introduced in reformers, water is added in overhead systems, etc. called



            a)            primary process points                 b)          level bridle points

            c)            injection points                             d)          test points



175)     What is the loss of ductility and notch toughness in susceptible low-alloy steels such as 1.25 and 2.5 Cr., due to prolonged exposure to high-temperature service called ?



            a)            creep                                                          b)          temper embrittlement

            c)            incipient melting                                        d)          graphitisation



176)     Secondary process piping is small-bore (less than or equal to __________) process piping downstream of normally closed block valves



            a)            NPS 3/4             b)          NPS 1                c)          NPS 2                d)          NPS 3



177)     A test point is an area defined by a circle having a diameter not greater than __________ inches for a line diameter not exceeding 10 inches or not greater than __________ inches for larger lines.



            a)            3, 4                     b)          2, 3                     c)          1, 2                     d)          3/4, 1



178)     When making a repair utilising a welded full encirclement repair sleeve and the sleeve material is different from the pipe material, you should



            a)            consult the piping engineer

            b)           use a weld rod matching the higher strength material

            c)            use a weld rod matching the lower strength material

            d)           use an alloy weld rod such as Inco-A



179)     What type of electrode should be  used when welding a full encirclement repair sleeve?



            a)            low-hydrogen electrode               b)          low-phosphorous electrode

            c)            low-chrome electrode                                d)          low-nitrogen electrode



180)     Which of the following welding electrodes is low-hydrogen ?



            a)            E6010                b)          E7016                c)          E7011                d)          E7014



181)     When welding a small repair patch, the diameter of electrodes used should not exceed



            a)            1/8"                    b)          3/16"                  c)          5/32"                  d)          1/4"

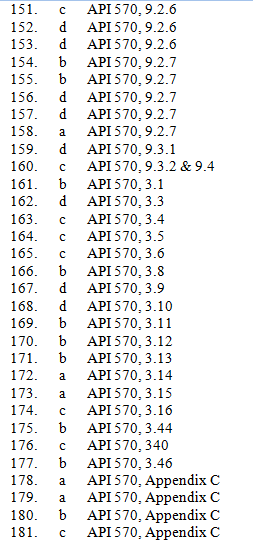

ANSWER
